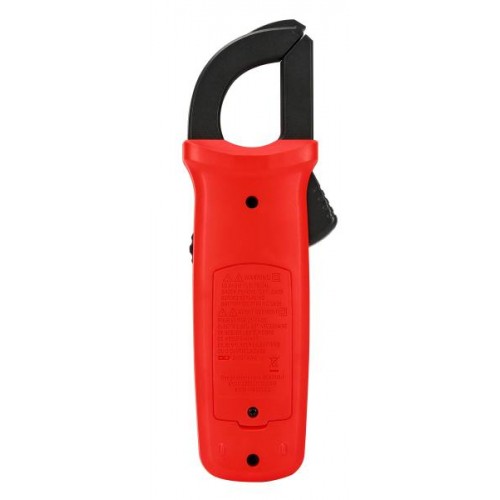

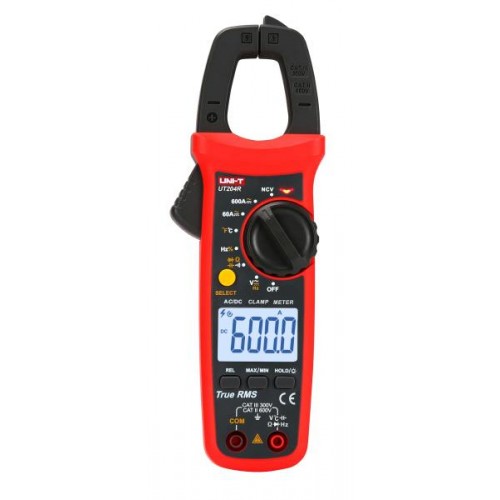

UT204R Digital True RMS Clamp Meter Description

The UT204R Digital true RMS Clamp Meter can measure AC/DC voltage, AC/DC current, resistance, capacity, and frequency. In addition, it can also measure temperature. It has an auto range function, which chooses automatically the correct measurement range for the chosen measurement function. With its 6000 counts display, the UT204R ensures precise measurement read-outs. The 28mm jaw opening makes operation easy, especially when taking measurements on large cables or conductors. Having a continuity and diode test function is also incredibly useful to troubleshoot electrical problems, while the data hold function with a MAX/MIN and relative modes ensures that you always have access to your most recent readings.

Other features that make the UT203R digital clamp meter a versatile device are a low battery Indication and the auto power off function, which helps to save on battery.

The UT204R complies with all EU safety standards and has a CAT III 300V/CAT II 600V rating.

UT204R Digital True RMS Clamp Meter Features

• 600V AC/DC Voltage measurement, 600A AC/DC current measurement, resistance, and capacitance measurement
• Temeprature measurement
• Auto range
• True RMS
• 6000 Counts for precise measurement read-outs
• 28mm Jaw opening
• Continuity and Diode test
• MAX/MIN and relative mode
• Data hold function
• Low battery indication
• Auto power off
• NCV (non contact voltage detection) for safe measurements
• Scope of delivery: Device, test leads, Thermocouple, Manual
