Kenmerken:
Seriële omvormer in industriële uitvoering en kwaliteit. Beveiligd tegen elektrostatische ontladingen tot 25 kV. Galvanische scheiding tot 2 kV.• Converts an RS-232 port to a high speed RS-422/485 port
• 2000V DC optical isolation for all signals
• DCE/DTE pin assignment can be selected
• SECC metal chassis with DIN rail bracket
• LEDs indicate TxD and RxD for easy port monitoring and diagnosis
• Automatic transmit and receive control for 2-wire RS-485 half-duplex mode
• Built-in termination and biasing
• Serial port protected with surge protection of 25kV
• High speed serial port with baud rate up to 921.6kbps
Specificaties:
Seriële signalen:• Input RS-232
• Output RS-422/485
• Number of Ports 1
• Connector Input: DB9
• Output: DB9 and 5-pin terminal block
• Max. Speed 921.6kbps for transmit & receive
• RS-422 Signals TxD-, TxD+, RxD+, RxD-, GND, RTS-, RTS+, CTS+, CTS-
• RS-485 Signals (4 wire) TxD-, TxD+, RxD+, RxD-, GND
• RS-485 Signals (2 wire) Data-, Data+, GND
• Protection 25kV ESD protection for all signals, 2000V DC optical isolation for all signals
Voeding: adapter 12 V, 1 A
Werkomgeving:
• Operating Temperature 0°C to 55°C (32°F to 131°F)
• Storage Temperature -20°C to 75°C (-4°F to 167°F)
• Operating Humidity 5% to 95% RH
• Safety Approvals CE, FCC
Sorry, helaas geen extra data beschikbaar op dit moment.

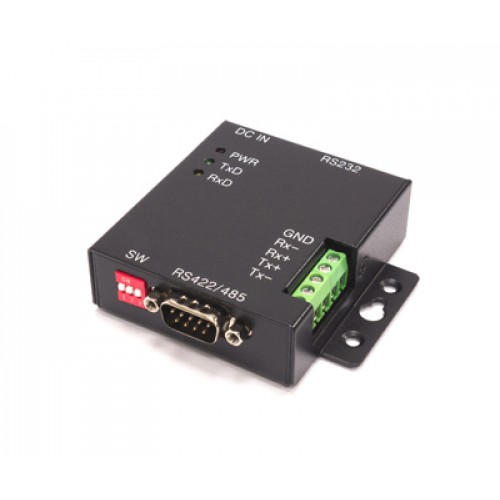

SER-COMi-SI-M
- Model: 920.44113.9
- Beschikbaarheid: 0
Klik hier voor een aanvraag van de LT of alternatief.
-
158,67€
- Excl. BTW: 131,13€
