Kenmerken:

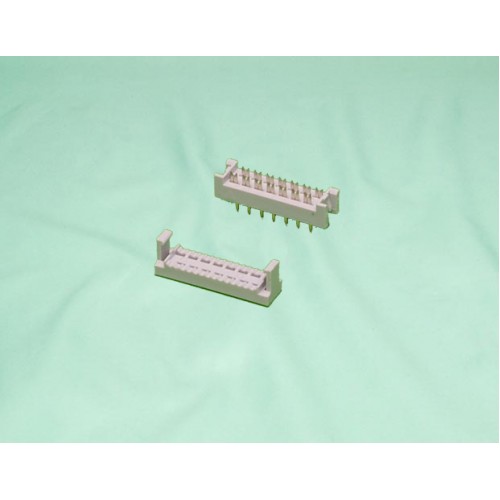

10-pins DIP connector voor printmontageSpecificaties:
• Rechtopstaande PCB header (180°)• 2x5 pins, stap 2.54mm
• Isolatie: PBT, versterkt met glas, UL94V-0
• Contacten: koper
• Maximale stroom: 1A DC
• Contactweerstand: 30mΩ max.
• Isolatieweerstand: 3000MΩ min.
• Doorslagbestendigheid isolatie: 500V AC (gedurende 1 minuut)
• Werkingstemperatuur: -40°C tot +105°C
• Afmetingen: 18.04mm x 6.0mm x 7.2mm (meer afmetingen in pdf-bestand)
Sorry, helaas geen extra data beschikbaar op dit moment.
AW 10/DIP/FL
- Model: 579.00910.1
- Beschikbaarheid: Op voorraad
-
0,47€
- Excl. BTW: 0,39€
